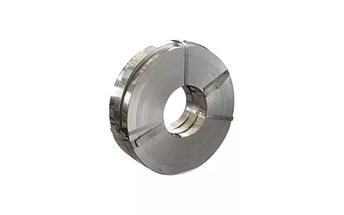

Circle, wire, tube permendur 49® - hiperco 50a®
Percentage composition of permendure material 49
The main part of the composition is iron - 40-50%. The composition also includes cobalt, its share is about a term of percent.
| Fe | C | Si | Mn | Ni | S | P | V | Co |
|---|---|---|---|---|---|---|---|---|
| 47.01 - 50.7 | up to 0.05 | up to 0.3 | up to 0.3 | up to 0.5 | up to 0.02 | up to 0.02 | 1.3 - 1.8 | 48 - 50 |
Magnetically soft precision alloy with a magnetic saturation of at least 2.35 T, a high Curie point of 950 °C and high magnetostriction.
Technical characteristic
Magnetically soft materials have a high magnetic initial permeability and can be magnetized in weak fields and to saturation. This includes alloys that in addition to iron include cobalt and vanadium.Mechanical properties (temperature 20°C)
| Assortment | GOST | s in | sT | d5 | KCU |
| - | mm | MPa | MPa | % | kJ/m2 |
| Tape, | 10160-75 | 490 | 345 | ||
| Embossed Tape | 10160-75 | 1320 | 1 |
Physical properties
| t° | E 10- 5 | a 10 6 | r | R 10 9 |
| Degree | MPa | 1/Gradus | kg/m3 | Ohm-m |
| 20 | 2.2 | 8150 | 400 | |
| 100 | 9.2 |
Sv - Ultimate Short-Term Strength
sT - Limit of proportionality (yield strength for permanent deformation)
d5 - Tensile elongation at break.
E - Modulus of elasticity of the first kind
KCU - Impact strength
r - specific gravity
R - specific electrical resistance.
Application
Manufacture of pole tips, microphones, computer measurement equipment, magnetic cores which are intended for work in sea water, and also magnetic antennas
Supply
The supplier of precision alloys presents certified products. The technical documentation contains all data concerning chemical composition, percentage of impurities and mechanical properties of precision plates. From us you can buy precision rounds, wires and tubes at an adequate price. For wholesale buyers we offer precision alloys with discount discount.
Certification
All products from our company have been certified. The technical documentation contains data on composition, mechanical quality and impurity content.
Buy, price from supplier
Precision circle, wire, pipe permendyur 49 from supplier Evek GmbH can be purchased wholesale or retail. The site reflects the price and range of products to date. Excellent product quality and adequate price is the face of supplier Evek GmbH. Regular customers can buy precision rounds, wires, tubes permendyur 49, using a discount system from the company Evek GmbH. Delivery is made from the warehouses located.
